SPD Electrochromic Smart Tint Film Switchable Glass Film for UV Protection, Privacy Control Energy Saving


Availability:

Quantity:



Inquire Add to Basket

SPD smart glass is a safety intelligent glass customized using SPD specific EVA film laminating technology. Customization of irregular shapes is possible, and flat surfaces can be perforated and cut into various shapes. According to the needs of the scene, curved smart glass can also be made. Curved smart glass is divided into curved steel smart glass or hot bending smart glass (in general, only hot bending smart glass can be made for diameters less than 1 meter). In some cases, PC can be used instead of glass, which also increases the process of insulating glass. When made into insulating glass, the product can have better sound insulation and heat insulation effects. It is worth noting that SPD materials have a maximum temperature resistance of 105 degrees and require the use of RuShui specific SPD film.

SPD film spd electrochromic smart tint glass

Product Description

SPD smart glass is a safety intelligent glass customized using SPD specific EVA film laminating technology. Customization of irregular shapes is possible, and flat surfaces can be perforated and cut into various shapes. According to the needs of the scene, curved smart glass can also be made. Curved smart glass is divided into curved steel smart glass or hot bending smart glass (in general, only hot bending smart glass can be made for diameters less than 1 meter). In some cases, PC can be used instead of glass, which also increases the process of insulating glass. When made into insulating glass, the product can have better sound insulation and heat insulation effects. It is worth noting that SPD materials have a maximum temperature resistance of 105 degrees and require the use of RuShui specific SPD film.

Key attributes

Feature	Self-Adhesive	Type	Glass Films
Material	Other	Function	Decorative, Explosion-proof, Heat Insulation
Project Solution Capability	Graphic design, 3D model design, overall solution	After-sale Service	Online technical support, Onsite Installation
Application	Hotel	Design Style	Modern
Thickness	0.48mm	Product Name	spd electrochromic smart tint glass
Glass thickness	Conventional thicknesses such as 5/6/8/10mm	EVA film thickness	0.76mm
smart film thickness	0.48mm	width	100-1500(mm)
length	100-3600(mm)	Surface Treatment	Frosted / Etched

Packaging and delivery

Selling Units	Single item	Single package size	25X25X120 cm
Single gross weight	30.000 KG

Product Size SPD Electrochromic Glass

Thickness	Glass/PC	5 / 6 / 8 / 10mm common thickness
	EVA	0.76mm
	Smart film	0.48mm
	EVA	0.76mm
	Glass/PC	5 / 6 / 8 / 10mm common thickness
Zize	Width	100-1500(mm) normal
Zize	Length	100-3600(mm) normal
package	Customized wooden box packaging according to actual situation

Product physical properties SPD Electrochromic Glass

Project	State	Result	Test methods/standards
Working Voltage	ON	90V	Voltage power analyzer, voltage regulator, haze meter
Power consumption	ON	3 w/m2	Voltage power analyzer, autotransformer
Response time	Off → On On →Off	≤ 1 second ≤9 second	LCD parameter comprehensive tester
Operating temperature	--	－20℃－90℃	Voltage regulator, constant temperature and humidity testing machine
Life	--	More than 100,000 hours	GB18910.5-2008
Number of switches	--	More than 200 million times	Homemade switching times tester

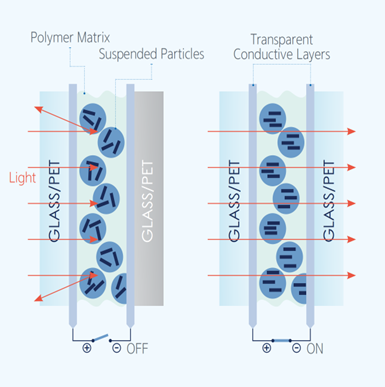

The SPD film is driven by alternating current, fades when powered on, and is colored when powered off, and can absorb and block about 95% of visible light.

Product optical performance SPD Electrochromic Glass

Item	State	Result	Test Methods/Standards
Transmittance	ON	59%	Voltage Regulator, High precision transmittance tester
Transmittance	OFF	2%	Voltage Regulator, High precision transmittance tester
Ultraviolet Ray	ON	Barrier 99%	Uv Divider, Voltage Regulator
Ultraviolet Ray	OFF	Barrier 99%	Uv Divider, Voltage Regulator
Infrared Ray	ON	Blocking 17%	Fourier transform infrared spectrometer, Voltage Regulator
Infrared Ray	OFF	Blocking 63%	Fourier transform infrared spectrometer, Voltage Regulator
When the power is turned off, it appears dark blue and becomes transparent when powered on
