Q: What is the difference between automotive dimming film and ordinary automotive film?

1. What is the difference between "automotive dimming film" and regular automotive film? - "Automotive dimming film" is a type of automotive film that has the ability to adjust its tint level based on the amount of sunlight, while regular automotive film has a fixed tint level. 2. What are the advantages of using "switchable film for vehicles" for vehicles? - "Automotive dimming film" offers the benefit of adjustable tint levels, providing flexibility in controlling the amount of sunlight and heat entering the vehicle. 3. How does "Automotive Switchable Film" compare to traditional automotive film in terms of performance? - "Automotive Switchable Film" offers superior performance compared to traditional automotive film by allowing users to customize the tint level according to their preferences and needs. 4. Can "Automotive Switchable Film" be easily installed on vehicles? - Yes, "Automotive Switchable Film" can be easily installed on vehicles by following the manufacturer's instructions and using the appropriate tools for a seamless application. 5. Are there any specific maintenance requirements for "Automotive Switchable Film"? - Regular cleaning and maintenance are recommended for "Automotive Switchable Film" to ensure its longevity and optimal performance. Use a mild soap solution and a soft cloth to clean the film periodically.

Q: What is the difference between exterior adhesive dimming film and laminated dimming film?

1. What is the difference between exterior adhesive dimming film and laminated dimming film? - Exterior adhesive dimming film is applied to the outside of the glass, while laminated dimming film is sandwiched between two layers of glass. 2. How does dimming film work in electronic dimming film applications? - Dimming film uses a special technology to adjust the amount of light passing through, providing control over brightness levels. 3. What are the benefits of using dimming film in commercial settings? - Dimming film can help reduce glare, regulate natural light, and improve energy efficiency in commercial spaces. 4. Can dimming film be customized to fit specific window sizes? - Yes, dimming film can be cut to size and tailored to fit a variety of window shapes and dimensions. 5. How does dimming film compare to traditional window treatments like blinds or curtains? - Dimming film offers a sleek, modern alternative to traditional window treatments, providing a seamless and adjustable solution for controlling light levels.

Question 1

How to install the smart dimming film and what are the precautions?

Accepted Answer

Preparation before installation

1. Check materials and tools

Dimming film: confirm the size, voltage (such as PDLC usually requires 24V-110V AC/DC), light transmittance and other parameters.

Supporting equipment: power controller, switch, transformer (if required), conductive tape or electrode leads.

Tools: dust-free cloth, scraper (or soft card), utility knife, tape measure, level, soldering iron (if soldering electrodes are required).

Cleaning products: glass detergent, alcohol, dust removal stickers.

2. Substrate surface treatment

Clean the installation surfaces such as glass or acrylic to ensure that there are no dust, oil, or water stains (can be wiped with alcohol and dried). Measure and mark the installation position to ensure that the dimming film is aligned with the frame (the error must be <1mm).

Installation steps (taking PDLC dimming film as an example)

1. Fix the dimming film: Spray a small amount of soapy water on the surface of the glass, adjust the position after applying the dimming film, and then squeeze out the water stains with a scraper. Then wipe dry the residual moisture on the edge with a dust-free cloth.

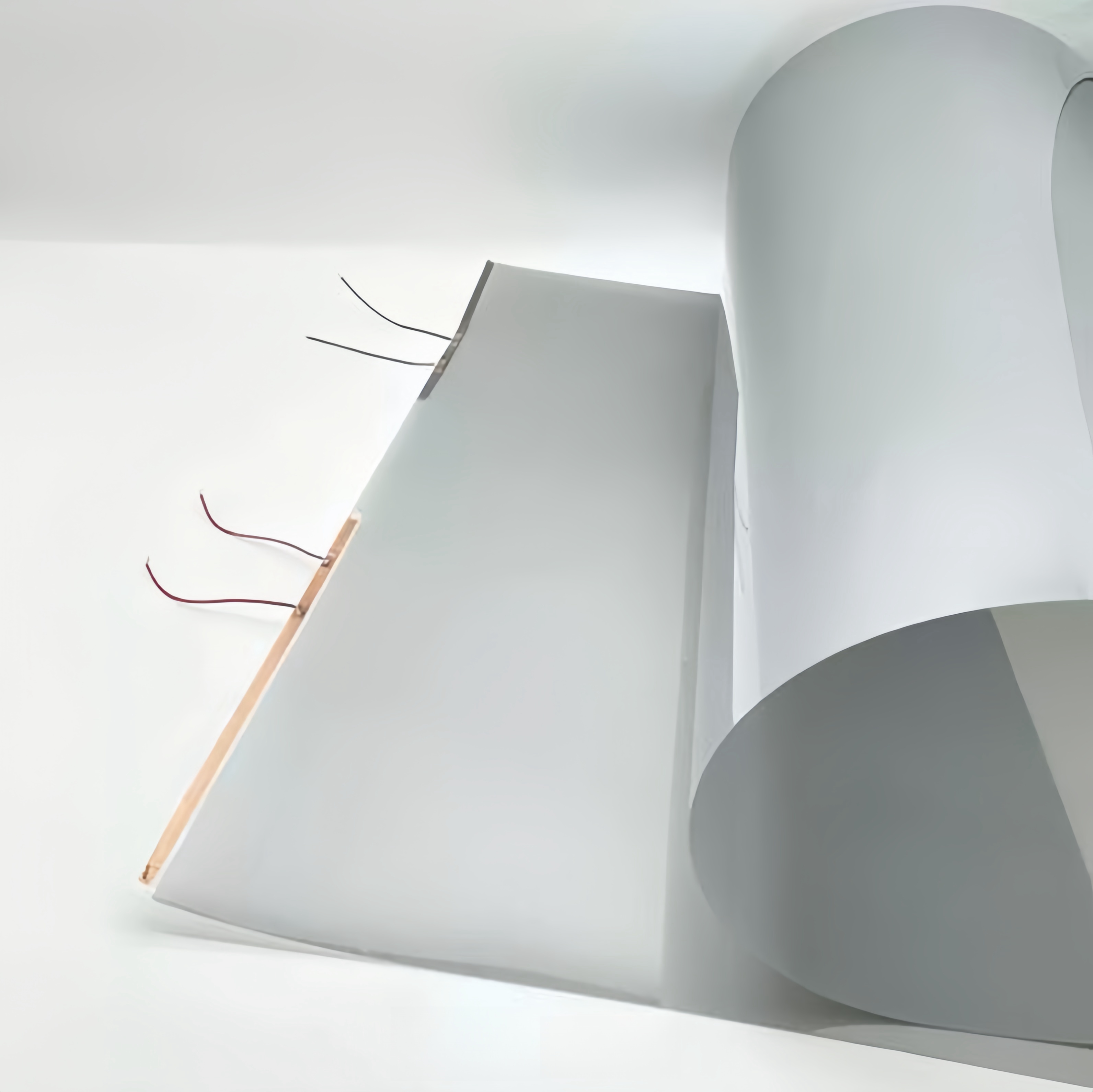

2. Electrode connection: The dimming film has an electrode area (usually silver conductive strips) left at the edge of the dimming film, and wire it in the following way:

Welding method: Use wires to weld the electrodes and fix them with insulating tape.

Conductive tape method: paste the conductive tape in the electrode area and connect the power cord to the other end.

Make sure the positive and negative poles are correct (reverse connection may cause the dimming film to not work or damage).

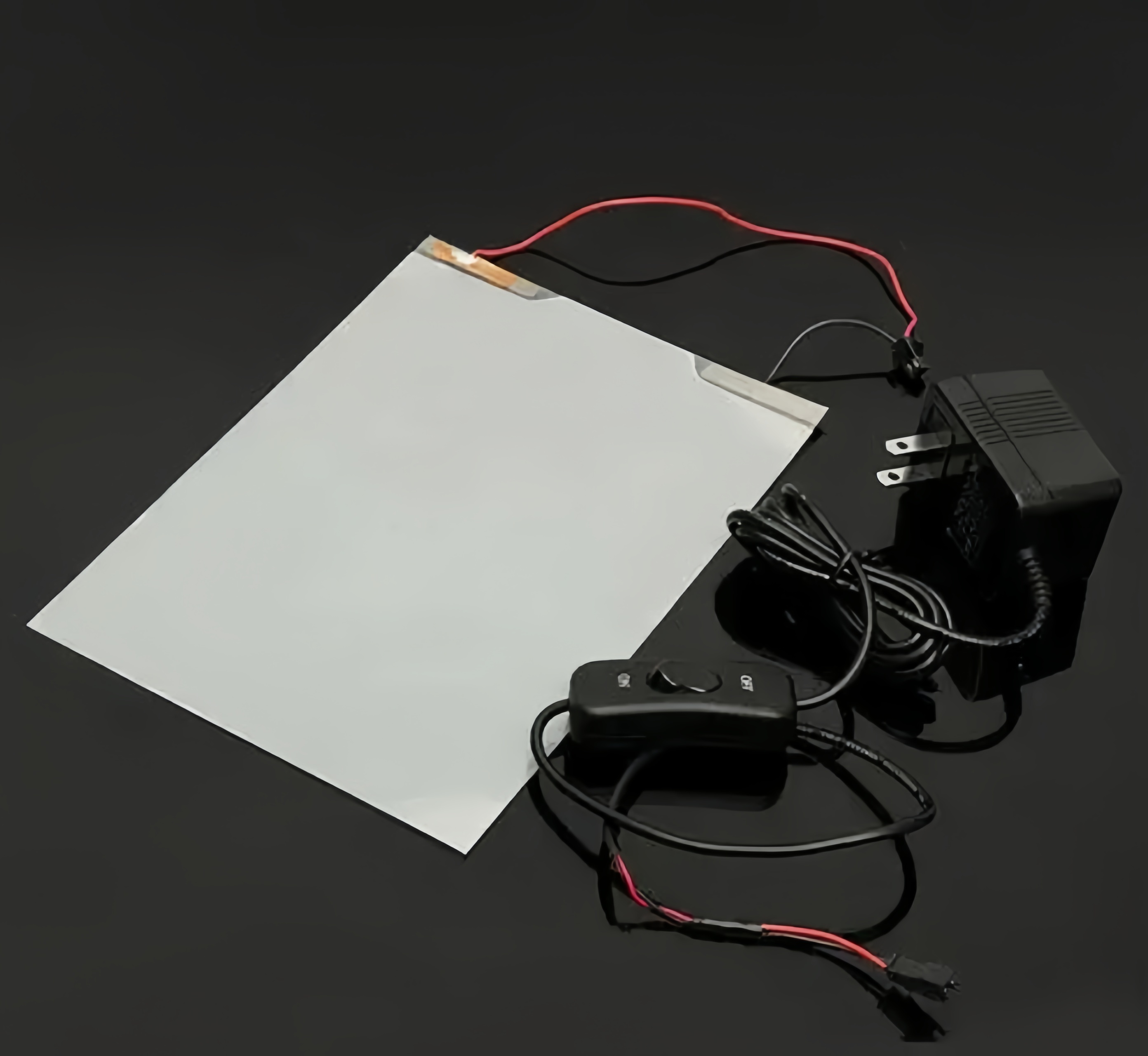

3. Installation of power and control equipment

Connect the transformer or controller (need to match the dimming film voltage). Test switch function: After power on, the dimming film should quickly become transparent, and the power off will be restored to the atomization state.

4. Edge treatment: Use a utility knife to trim the excess film edge (maintain the angle between the blade and the glass ≤30° to avoid scratches).

Things to note

1. Safety protection: Wear gloves during operation to avoid fingerprints contaminating the conductive layer. The high-voltage dimming film needs to be powered off to prevent electric shock.

2. Environmental requirements: The installation temperature is recommended to be 10℃-30℃, and the humidity is less than 70% (low temperature may lead to a decrease in the viscosity of the glue layer). Avoid hard objects scratching the surface of the film (PDLC layer is relatively fragile).

3. Frequently Asked Questions:

Bubble: Poke it with a needle and scrape it flat, or re-removal and paste it.

Local opacity: Check whether the electrode contact is poor.

Power interference: Avoid arrangement with strong wires in parallel, and add a shield if necessary.

Acceptance and maintenance

1. Acceptance standards: The entire area is transparent/atomized evenly, and there are no visible bubbles or wrinkles. The switch response time is in accordance with the product instructions (usually <1 second).

2. Daily maintenance: Use a soft cloth to wipe it with a clean water during cleaning, and use corrosive cleaners. It is recommended to shut down the power for a long time.
1741572790976

Question 2

What is a smart dimming film?

Accepted Answer

A dimming film (Smart Film** or PDLC Film) is a smart film that can control the light transmission state through electrical signals. It is usually composed of two transparent conductive materials (such as ITO) sandwiched with polymer dispersed liquid crystal (PDLC) layers. Its core feature is that it can quickly switch between transparent and opaque (atomized) states, achieving privacy protection, light adjustment or projection screen functions.

Core Principle

1. PDLC technology: The liquid crystal molecules in the dimming film are arranged in disorderly when the power is out, and the light is scattered, showing a frosted and opaque state. When powered on, the liquid crystal molecules are arranged in an orderly manner, light passes through directly, and the film becomes transparent. The voltage is usually low voltage (such as 24V-110V AC/DC), and is controlled by a switch or intelligent system.

2. Other technical types:

Electrochromic (EC): Changes color through ion migration, slower response but more energy-efficient.

SPD (suspended particles): It needs to be continuously powered on and maintained transparently, and becomes dark when powered off.

Main features:

Quick Switch: The response time of PDLC films is usually in the milliseconds.

Adjustable light transmittance: The light transmittance in transparent state can reach more than 80%, and the atomization state can be less than 10%.

Energy saving: PDLC only consumes power during switching, and maintains the state and consumes almost no energy (EC saves more power).

UV protection: Some products can block more than 99% of ultraviolet rays.

Privacy and projection: The atomized state can be used as a projection screen (such as commercial display).

Dimming film is an innovative product in the field of smart materials. With the maturity of technology and the decline in costs, it has great potential in green buildings, automotive electronics and other fields in the future.

Question 3

What is a dimming film for automotive use?

Accepted Answer

Automotive dimming film is an intelligent film technology applied to automotive glass. It can change its light transmittance through electronic control, temperature control or light control, thereby adjusting the light intensity, privacy and thermal comfort in the car.

1. Core principle:

Electrochromic: By applying a voltage, the ions in the film are migrated and the optical properties (such as light transmittance and reflectivity).

Suspended particles (SPD): Under the action of an electric field, the particles in the film are rearranged to achieve the adjustment of light transmittance.

Liquid crystal dimming (PDLC): When power is turned on, the liquid crystal molecules become transparent in an orderly manner, and the scattered light is atomized when power is turned off.

2. Main functions:

Privacy protection: One-click atomize side or rear windows to prevent outsiders from snooping.

Sunshading and heat insulation: reduces infrared and ultraviolet rays and reduces air conditioning energy consumption.

-Anti-glare: Automatically adjust the light transmittance to alleviate the glare of strong light.

Beautiful and technological sense: enhances the modern feel of the interior, which is commonly found in high-end models or modifications.

3. Advantages:

Energy-saving and environmentally friendly: reduce air conditioning use and energy consumption.

Intelligent: It can be integrated into the on-board system and automatically controlled through buttons, APP or light sensors.

Safety: Explosion-proof performance is enhanced, and some products can reduce the risk of glass breakage.

Vehicle dimming film represents the development direction of intelligent automotive glass, and may be further integrated with autonomous driving and vehicle networking technologies in the future, such as automatic adjustment based on passenger needs or ambient light. d39918a33aacc98a704f12a371c40ca

Question 4

What is the difference between automotive dimming film and ordinary automotive film?

Accepted Answer

1. What is the difference between "automotive dimming film" and regular automotive film?

- "Automotive dimming film" is a type of automotive film that has the ability to adjust its tint level based on the amount of sunlight, while regular automotive film has a fixed tint level.

2. What are the advantages of using "switchable film for vehicles" for vehicles?

- "Automotive dimming film" offers the benefit of adjustable tint levels, providing flexibility in controlling the amount of sunlight and heat entering the vehicle.

3. How does "Automotive Switchable Film" compare to traditional automotive film in terms of performance?

- "Automotive Switchable Film" offers superior performance compared to traditional automotive film by allowing users to customize the tint level according to their preferences and needs.

4. Can "Automotive Switchable Film" be easily installed on vehicles?

- Yes, "Automotive Switchable Film" can be easily installed on vehicles by following the manufacturer's instructions and using the appropriate tools for a seamless application.

5. Are there any specific maintenance requirements for "Automotive Switchable Film"?

- Regular cleaning and maintenance are recommended for "Automotive Switchable Film" to ensure its longevity and optimal performance. Use a mild soap solution and a soft cloth to clean the film periodically.

Question 5

What is the difference between exterior adhesive dimming film and laminated dimming film?

Accepted Answer

1. What is the difference between exterior adhesive dimming film and laminated dimming film?

- Exterior adhesive dimming film is applied to the outside of the glass, while laminated dimming film is sandwiched between two layers of glass.

2. How does dimming film work in electronic dimming film applications?

- Dimming film uses a special technology to adjust the amount of light passing through, providing control over brightness levels.

3. What are the benefits of using dimming film in commercial settings?

- Dimming film can help reduce glare, regulate natural light, and improve energy efficiency in commercial spaces.

4. Can dimming film be customized to fit specific window sizes?

- Yes, dimming film can be cut to size and tailored to fit a variety of window shapes and dimensions.

5. How does dimming film compare to traditional window treatments like blinds or curtains?

- Dimming film offers a sleek, modern alternative to traditional window treatments, providing a seamless and adjustable solution for controlling light levels.
photobank-2

Question 6

Application of automotive dimming film

Accepted Answer

In today's fast-paced world, where style and functionality go hand in hand, the use of automotive window tint films has become increasingly popular. These innovative films not only enhance the aesthetic appeal of vehicles but also offer a range of practical benefits. From reducing glare and heat to providing privacy and security, automotive window tint films are a versatile solution for modern drivers.

One of the key advantages of automotive window tint films is their ability to improve visibility and comfort while driving. By reducing glare from the sun and other vehicles, these films help to create a safer and more enjoyable driving experience. Additionally, they can help to regulate the temperature inside the vehicle, keeping it cool and comfortable even on the hottest days.

Another important benefit of automotive window tint films is their ability to provide privacy and security for both drivers and passengers. By blocking the view into the vehicle from the outside, these films help to protect personal belongings and deter potential thieves. This added layer of security can give drivers peace of mind, especially when parking in unfamiliar or high-crime areas.

Furthermore, automotive window tint films can also help to protect the interior of the vehicle from sun damage and fading. By blocking harmful UV rays, these films can extend the life of upholstery, dashboard materials, and other interior components. This not only helps to maintain the value of the vehicle but also creates a more comfortable and inviting interior environment.

In terms of application scenarios, automotive window tint films can be used in a variety of vehicles, including cars, trucks, SUVs, and even commercial vehicles. Whether for personal use or for business purposes, these films offer a cost-effective way to enhance the appearance and functionality of any vehicle. Additionally, with a range of tint levels and colors available, drivers can customize their vehicles to suit their individual preferences and needs.

In conclusion, the applications of automotive window tint films are vast and varied, making them a valuable addition to any vehicle. Whether for improving visibility, enhancing security, or protecting the interior, these films offer a range of benefits that can enhance the driving experience for all. With their practicality and style, automotive window tint films are a must-have accessory for modern drivers looking to upgrade their vehicles in both form and function.
photobank-8

Question 7

PDLC Application scenarios of electronic dimming film

Accepted Answer

In today's fast-paced world, technology continues to evolve, offering innovative solutions to enhance our daily lives. One such groundbreaking product making waves in the market is smart dimming film. This cutting-edge technology is revolutionizing spaces by providing a dynamic and energy-efficient lighting solution.

Smart dimming film, also known as "PDLC Smart dimming film," is a versatile material that can be easily applied to windows, glass partitions, and other surfaces. Its primary function is to regulate the amount of light entering a space, thereby creating a comfortable and customizable environment. Whether in residential, commercial, or industrial settings, this product offers a myriad of benefits that cater to various needs.

The key to successfully promoting smart dimming film lies in highlighting its unique features and advantages. By emphasizing its ability to reduce glare, regulate heat, and enhance privacy, consumers can see the value it brings to their spaces. Additionally, its energy-saving properties make it an eco-friendly choice that aligns with sustainable living practices.

When marketing smart dimming film, it is essential to showcase real-life applications and success stories. By demonstrating how this product transforms ordinary spaces into dynamic and efficient areas, potential customers can envision the possibilities for their own environments. Utilizing visual aids such as before-and-after photos or interactive demonstrations can further engage and educate the target audience.

In conclusion, the promotion of smart dimming film requires a strategic approach that focuses on its unique selling points and benefits. By highlighting its versatility, energy efficiency, and transformative capabilities, this innovative product can capture the interest of consumers looking to enhance their living or working spaces. Embracing the future of lighting technology with smart dimming film is not just a trend but a smart investment in creating modern and sustainable environments.
photobank
