Fire partitions refer to facilities installed inside buildings to prevent the spread of fire, protect the safety of personnel and property.

Fireproof partitions, also known as fire-rated compartment elements, are critical architectural features in buildings designed to prevent the spread of fire and smoke, thereby ensuring the safety of occupants and allowing for effective rescue operations. These partitions can be either vertical, such as walls and partitions, or horizontal, like floors and ceilings, and they form boundaries that resist the spread of fire.Here is a detailed introduction：

1.Temperature Control: Insulation in fire partitions is designed to prevent the temperature on the unexposed side (the side away from the fire) from rising significantly. This is important because if the temperature on the unexposed side gets too high, it could cause combustible materials in the adjacent non-fire compartment to spontaneously ignite, spreading the fire even before flames or hot gases penetrate the partition.

2.Fire Resistance Rating: The fire resistance rating of partitions, often expressed in minutes and usually in multiples of 30 minutes, also considers the insulation property. For instance, a partition that can keep flames and high temperatures at bay for at least 60 minutes is labeled as 'EI' 60, indicating it meets both integrity (E) and insulation (I) criteria.

3.Material Composition: The chemical composition of insulation materials plays a significant role in their fire-resistant properties. Materials like mineral wool and fiberglass, due to their inorganic nature, inherently resist combustion and provide reliable protection against fire hazards.

4.Thermal Insulation Effect: Fireproof partitions can be fixed on the surface of structures, such as steel shells, to provide a noticeable fire insulation effect. The thicker the fireproof board, the more pronounced the thermal insulation effect, with the maximum temperature of the steel shell having a quadratic relationship with the thickness of the fireproof boards.

5.Preventing Fire Spread: The insulation function of fire partitions is not just about containing the fire within one compartment; it also helps to prevent the spread of fire to adjacent compartments by controlling temperature rise, thus maintaining the integrity of the structure and safety of the occupants.

6.Safety and Comfort: Good partition insulation ensures a safer and more comfortable indoor environment by providing fire safety along with soundproofing and impact resistance.

In summary, the insulation function of fireproof partitions is vital for maintaining the structural integrity of a building during a fire, preventing the spread of fire to non-fire compartments, and ensuring the safety of the building's occupants.

partition wall office partitions partition doors wall partition partitions room dividers partitions screen interior partition partition wall divider

Product Description

微信图片_20241214095808

微信图片_20241214102505

Products Description

product name	Fireproof partition
Original	China
Colour	Grey sand color, brown sand grain color (customizable for large quantities)
Material	delicate steel and glass
Thickness	1.5mm/2.0mm/customizable
Size	Customer requirements
Glass	Double layer/laminated/tempered glass/crystal silicon glass/can based on your request
Packing	4-layer protective mold to prevent damage
specifications of the products	50、60、120Series all steel glass curtain wall (partition)
characteristic	Fireproof, thermal insulation, high temperature resistance
Fire resistance time	Insulation Class A A1.5H, Class B A1H，Non insulated C1.0
transport	Sea freight
application	Office buildings, schools, hospitals, large shopping malls, sports arenas, hotels
advantage	Good fire resistance and high safety，Stable fire resistance, high structural strength, and easy assembly
Delivery cycle	20Day

Our Advantages

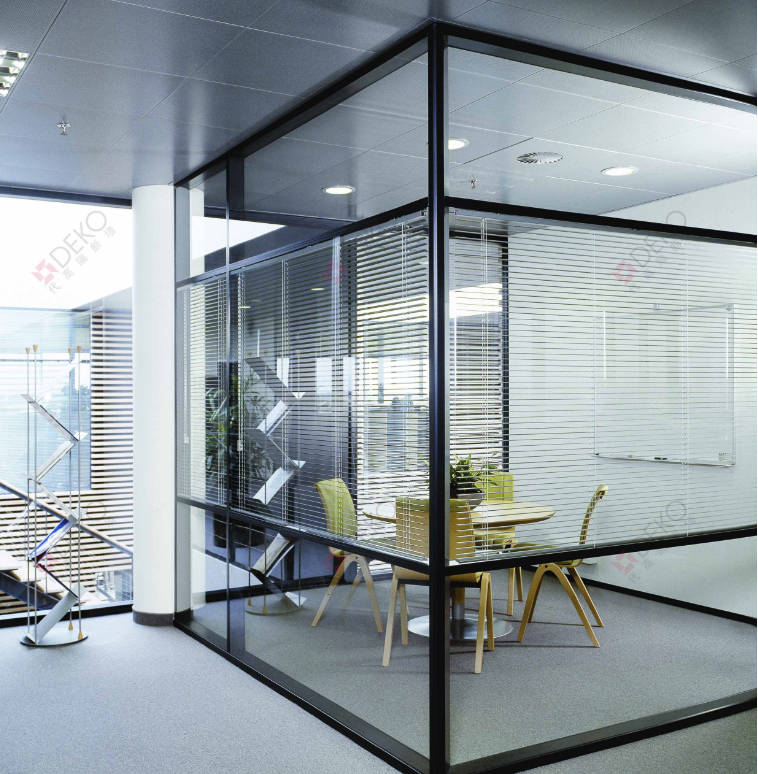

微信图片_20241216091453

01. Strict Production

All steel fireproof skeleton,

high stability,

strength, precision, fire resistance,

high temperature resistance

微信图片_20241216091327

02 Fashionable and Beautiful

Fireproof and energy-saving, beautiful and fashionable, good sound insulation performance, in accordance with national fire safety standards

微信图片_20241216092514

03 Scope of applicatio

Widely used in various building insulation and decoration projects, including factories, fire exits, residences, hotels, office buildings, hospitals, and shopping malls

partition3

04 Strong functionality

Reasonable space planning with multiple combinations and unlimited space. Customizable minimalist contours to save space

微信图片_20241216103115_副本

微信图片_20241216104404_副本微信图片_20241216105429_副本
微信图片_20241216091343

High quality high-strength aluminum alloy: using high-quality raw materials, high strength, no rust, no deformation
